Strategies

StrategiesWidget shows the list of running strategies: one row per strategy with its state, trading mode, position, order and trade counters, profit, and control buttons. The control identifier is strategies (ControlTypes.Strategies), also available through the static StrategiesWidget.TYPE property.

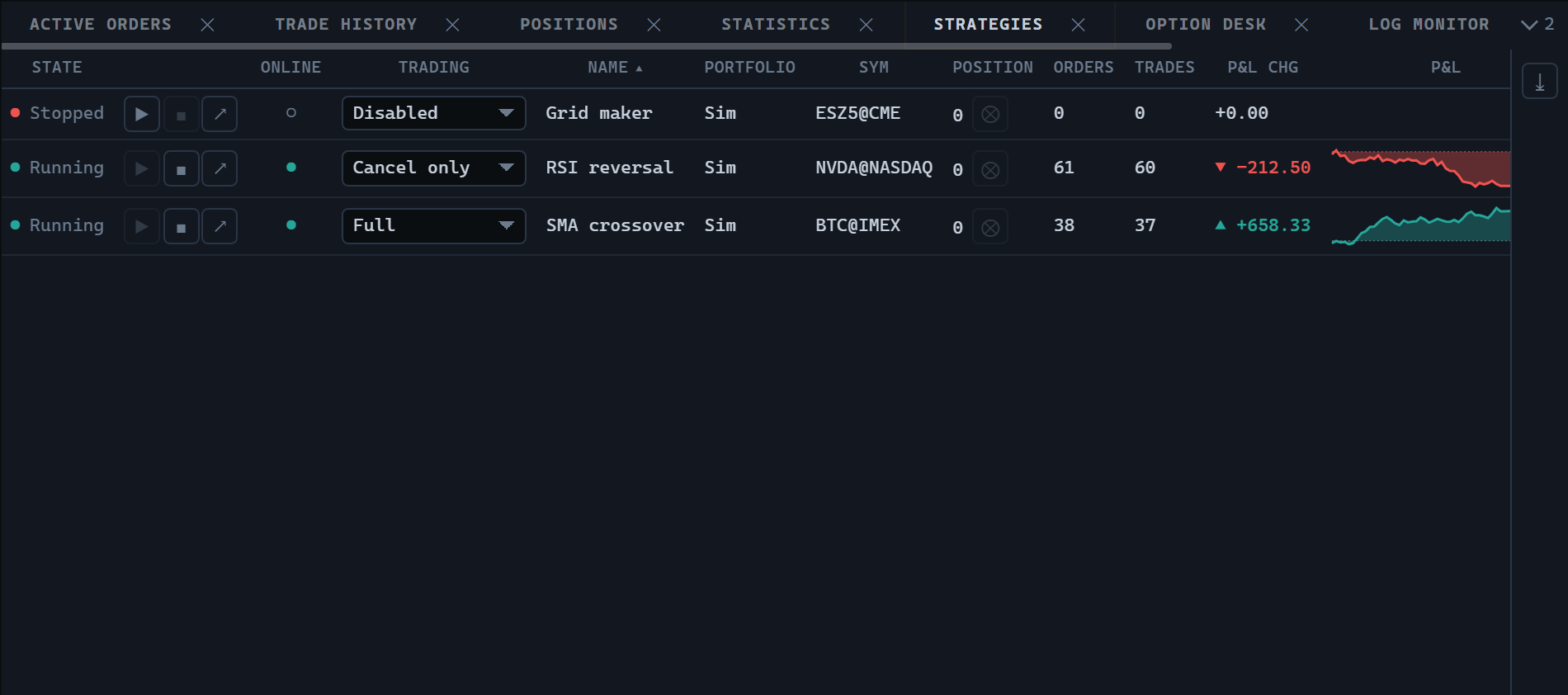

Strategy list with state, position, PnL and the equity curve

Creating and updating

import {
  StrategiesWidget,
  StrategyStates,
  type TradingHost,
} from '@stocksharp/trading-controls';

declare const host: TradingHost;

let strategies!: StrategiesWidget;

strategies = StrategiesWidget.create(
  document.querySelector<HTMLElement>('#strategies')!,
  {},
  {
    host,
    tradingModes: ['Disabled', 'CancelOrders', 'ReducePosition', 'Full'],
    start: id => console.log('start', id),
    stop: id => console.log('stop', id),
    closePosition: id => console.log('flatten', id),
    openStrategy: id => console.log('open', id),
    riskRules: id => console.log('risk', id),
    setTradingMode: (id, mode) => console.log('mode', id, mode),
  },
);

strategies.update([{
  id: 'sma-1',
  name: 'SMA crossover',
  state: StrategyStates.Started,
  online: true,
  tradingMode: 'Full',
  portfolio: 'Demo',
  security: 'BTC@IMEX',
  position: 0.25,
  ordersCount: 12,
  tradesCount: 8,
  pnlChange: 105,
  realized: 20,
  unrealized: 85,
  pnl: [
    { time: 1, value: 0 },
    { time: 2, value: 60 },
    { time: 3, value: 105 },
  ],
}]);

update takes the full set of rows and replaces the table with it: a strategy missing from the list is treated as deleted, and its row disappears. There is no streaming update of a single row — the new state arrives as a whole list.

The second argument of create is the saved instance state. The control neither reads it nor saves anything itself: no keys in host.preferences, no host.persistState calls.

The StrategyStates object exports the Stopped, Starting, Started, and Stopping states.

Dependencies

Only the host is mandatory. Host completeness is checked on creation by the assertHost function, so an incomplete TradingHost raises an exception naming the missing member rather than producing a button that does nothing.

Dependency	Required	Default behaviour
`host`	mandatory	—
`start(id)`	optional	No start button is created.
`stop(id)`	optional	No stop button is created.
`closePosition(id)`	optional	The position column shows the number only.
`openStrategy(id)`	optional	No button for opening the strategy is created.
`riskRules(id)`	optional	No risk rules button is created.
`setTradingMode(id, mode)`	optional	The trading mode is shown as text.
`tradingModes`	optional	An empty list; no mode drop-down is created.

This set makes a read-only panel possible: if no action function is passed, the table displays the data and shows no buttons at all.

The tradingModes strings go through host.t, that is, they serve as translation keys. They belong to the host rather than the package, so their absence from translation-keys.json is expected, and the host translates them.

States and actions

The state cell consists of a dot and a word: the dot is read when scanning the list quickly, while the word tells Starting from Started. When the row's error field is filled, the error text appears in the tooltip of both the dot and the word, and a strategy stopped by a failure is labelled "Error" rather than "Stopped".

Row buttons are created only for the functions supplied by the host, and are enabled only where the state allows it:

start — only for a strategy in the Stopped state;
stop — only for a strategy in the Started state;
close position — only for a running strategy with a non-zero position;
risk rules and opening the strategy — always.

The trading mode drop-down is enabled only for a stopped strategy: the mode decides what the strategy will be started with and is not a lever to pull while trading. Changing the mode calls setTradingMode; the control does not change the value in the row itself and waits for the next update.

Columns and presentation

The table shows state, actions, the online flag, trading mode, name, portfolio, security, position, order and trade counts, profit change, the profit chart, realized and unrealized profit, and the error. The online flag is a combined one: a strategy counts as online only if it is both formed and connected, and that is decided by the data provider.

The color classes for the position, the profit change, and both profit values are returned by host.presentation.pnlClass. The profit change is additionally marked with a direction arrow; a zero change carries no arrow.

The chart column draws the cumulative profit curve over the pnl points in a 140 × 26 CSS pixel field. The canvas is created with devicePixelRatio in mind, so the line stays crisp on high-density screens. The colors come from host.presentation.canvasPalette(), and the curve is colored by the outcome of the run: a strategy that reached a peak and gave it all back is shown as losing. Without pnl points the cell stays empty.

The default sorting is by name, ascending: the list is read top to bottom looking for a particular strategy, and rows reshuffling after the profit gets in the way of that reading. The panel also supports multiple row selection, a context menu, filters, and exporting to XLSX.

What is left to the host

The control does not start or stop strategies, does not send orders, and does not close positions — it calls the functions it was given and waits for a new list of rows.

The control takes pnlChange as it is: the reference point is chosen by the data provider. That way a restarted strategy does not keep measuring the change from before the restart.

The panel close button calls host.close(), and the export writes out a strategies file. The instance registers itself with the host on creation and unregisters in dispose.

Public methods

StrategiesWidget.create(hostEl, state, deps) — build the panel and add it to the container.
update(rows) — replace the whole strategy list.
dispose() — unregister, remove the table, and release resources.
