净值曲线图

EquityCurveChart - 用于显示权益曲线的图形组件。

下面是使用该组件的示例。完整示例代码在 Samples/Testing/SampleHistoryTesting 中。

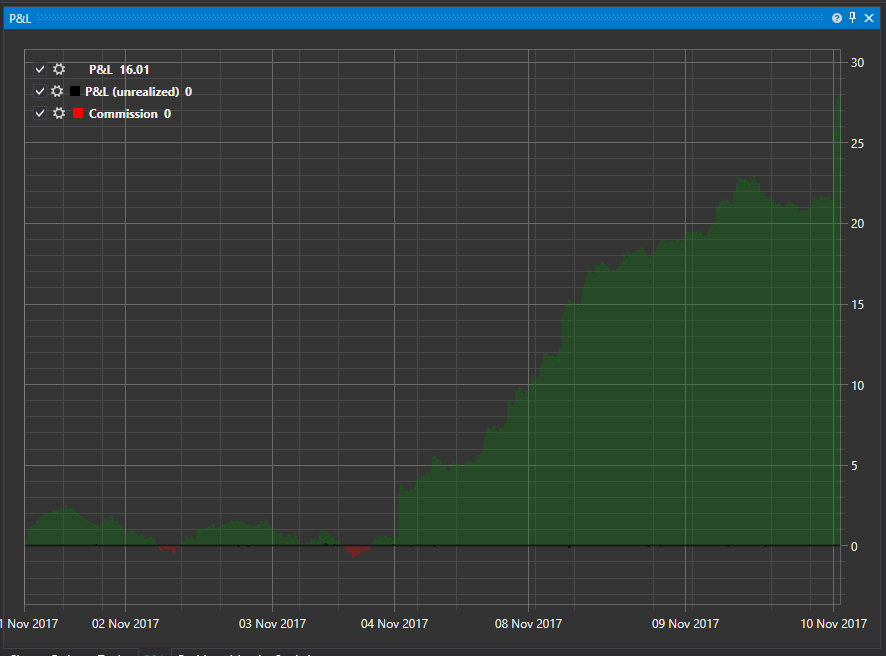

股权曲线图绘制示例

1. 我们将 EquityCurveChart 图形组件添加到 XAML。将 Curve 名称分配给该组件。

   <Window x:Class="SampleRandomEmulation.MainWindow"
           xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
           xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
           xmlns:loc="clr-namespace:StockSharp.Localization;assembly=StockSharp.Localization"
           Title="{x:Static loc:LocalizedStrings.XamlStr564}" Height="460" Width="604"
    	xmlns:sx="clr-namespace:StockSharp.Xaml;assembly=StockSharp.Xaml"
    	xmlns:charting="http://schemas.stocksharp.com/xaml">

    <Grid>
    	<Grid.ColumnDefinitions>
    		<ColumnDefinition Width="85*" />
    		<ColumnDefinition Width="497*" />
    	</Grid.ColumnDefinitions>
    	<Grid.RowDefinitions>
    		<RowDefinition Height="Auto"/>
    		<RowDefinition Height="*"/>
    	</Grid.RowDefinitions>
    	<Grid Grid.ColumnSpan="2">
    		<Grid.ColumnDefinitions>
    			<ColumnDefinition Width="100" />
    			<ColumnDefinition Width="*" />
    			<ColumnDefinition Width="Auto" />
    		</Grid.ColumnDefinitions>
    		<Grid.RowDefinitions>
    			<RowDefinition Height="Auto" />
    			<RowDefinition Height="10" />
    			<RowDefinition Height="Auto" />
    			<RowDefinition Height="10" />
    		</Grid.RowDefinitions>
    		<Button x:Name="StartBtn" Content="{x:Static loc:LocalizedStrings.Str2421}" Grid.Row="0" Click="StartBtnClick" />
    		<ProgressBar x:Name="TestingProcess" Grid.Column="1" Grid.Row="0" />
    		<Button x:Name="Report" Content="{x:Static loc:LocalizedStrings.XamlStr432}" Grid.Row="0" Width="75" IsEnabled="False" Click="ReportClick" Grid.Column="2" Margin="0,0,0,-1" />
    	</Grid>

    	<Grid Grid.Row="1" Grid.ColumnSpan="2" Grid.Column="0">
    		<Grid>
    			<Grid.ColumnDefinitions>
    				<ColumnDefinition Width="180"/>
    				<ColumnDefinition Width="*"/>
    			</Grid.ColumnDefinitions>
    			<sx:StatisticParameterGrid Grid.Column="0" x:Name="ParameterGrid" />
    			<charting:EquityCurveChart Grid.Column="1" x:Name="EquityCurveChart" />
    		</Grid>
    	</Grid>
    </Grid>
   </Window>



2. 在主窗口代码中，我们使用 EquityCurveChart.CreateCurve(System.String 标题, System.Windows.Media.Color 颜色, System.Windows.Media.Color 第二颜色, Ecng.Drawing.DrawStyles 样式, System.Guid id ) 方法创建一个数据源来绘制图表。

   private ChartBandElement _pnl;
   private ChartBandElement _unrealizedPnL;
   private ChartBandElement _commissionCurve;

   .................................................

   public MainWindow()
   {
    InitializeComponent();

    _logManager.Listeners.Add(new FileLogListener("log.txt"));

    _pnl = (ChartBandElement)EquityCurveChart.CreateCurve("PNL", Colors.Green, DrawStyles.Area);
    _unrealizedPnL = (ChartBandElement)EquityCurveChart.CreateCurve("unrealizedPnL", Colors.Black, DrawStyles.Line);
    _commissionCurve = (ChartBandElement)EquityCurveChart.CreateCurve("commissionCurve", Colors.Red, DrawStyles.Line);
   }



3. 当策略的盈亏值发生变化时，我们会向数据源添加数据。在这种情况下，我们使用特殊的 ChartDrawData 类。

   _strategy.PnLChanged += () =>
   {
    var data = new ChartDrawData();
    data.Group(_strategy.CurrentTime)
    	.Add(_pnl, _strategy.PnL)
    	.Add(_unrealizedPnL, _strategy.PnLManager.UnrealizedPnL ?? 0)
    	.Add(_commissionCurve, _strategy.Commission ?? 0);

    EquityCurveChart.Draw(data);
   };
