Create strategy panel

Every strategy in Shell has two panels: the setup panel in the Emulation area and the monitoring panel in the Real-time area. By default, both are common: the parameter table and, for emulation, a tab with the history settings. An own panel is needed when the strategy has something to show beyond that.

Blank

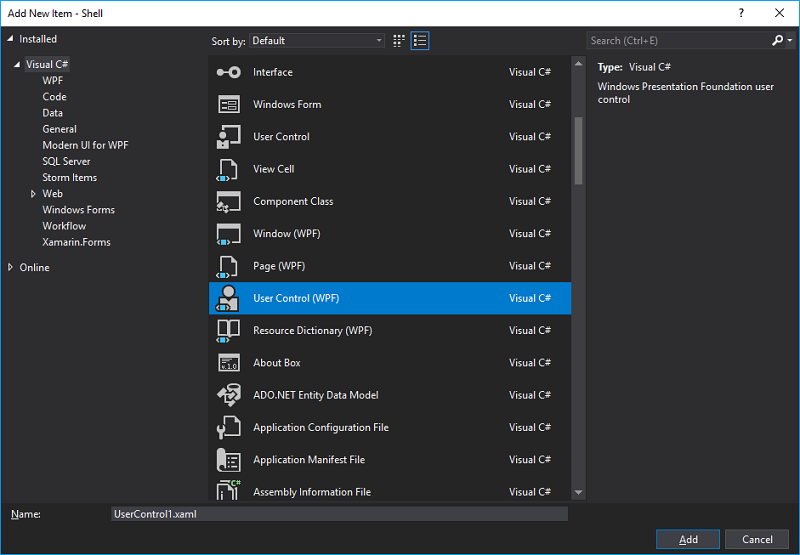

The panels are located in Shell.Avalonia/Shell.Avalonia/Views/Strategies/. An own panel is a regular Avalonia UserControl that uses one of the two common panels inside:

<UserControl xmlns="https://github.com/avaloniaui"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:views="using:Shell.Views.Strategies"
             xmlns:strategies="using:Shell.ViewModels.Strategies"
             x:Class="Shell.Views.Strategies.MyTestingView"
             x:DataType="strategies:StrategyDraftViewModel">
  <views:TestingView Header="My strategy, testing" />
</UserControl>

TestingView is the setup panel, MonitoringView is the monitoring panel. The Header property is the caption with which the panel names itself in its title bar.

The data context of the panel is always StrategyDraftViewModel — the very model the user edits. It gives access to the strategy name, its parameters, the run settings and the current state, so your own elements are bound to it directly, without accessing the main window.

Binding the panel to the strategy

Which panel is shown for which strategy is decided by StrategyDraftViewLocator. It lists the pairs "area + template kind - panel":

public Control Build(object data)
	=> data switch
	{
		StrategyDraftViewModel { WorkspaceKind: StrategyWorkspaceKind.Backtest, TemplateKind: StrategyTemplateKind.Sma } => new SmaTestingView(),
		StrategyDraftViewModel { WorkspaceKind: StrategyWorkspaceKind.Realtime, TemplateKind: StrategyTemplateKind.Sma } => new SmaMonitoringView(),
		...
		StrategyDraftViewModel { WorkspaceKind: StrategyWorkspaceKind.Backtest } => new TestingView(),
		StrategyDraftViewModel { WorkspaceKind: StrategyWorkspaceKind.Realtime } => new MonitoringView(),
		_ => null,
	};

The last two lines are the default panels: a strategy for which nothing has been added gets them.

What you do not need to show

You do not need to draw the trades chart, statistics, equity curve, orders and own trades in your panel — these are separate panels next to it, and they are filled by themselves for any strategy.
