Boards

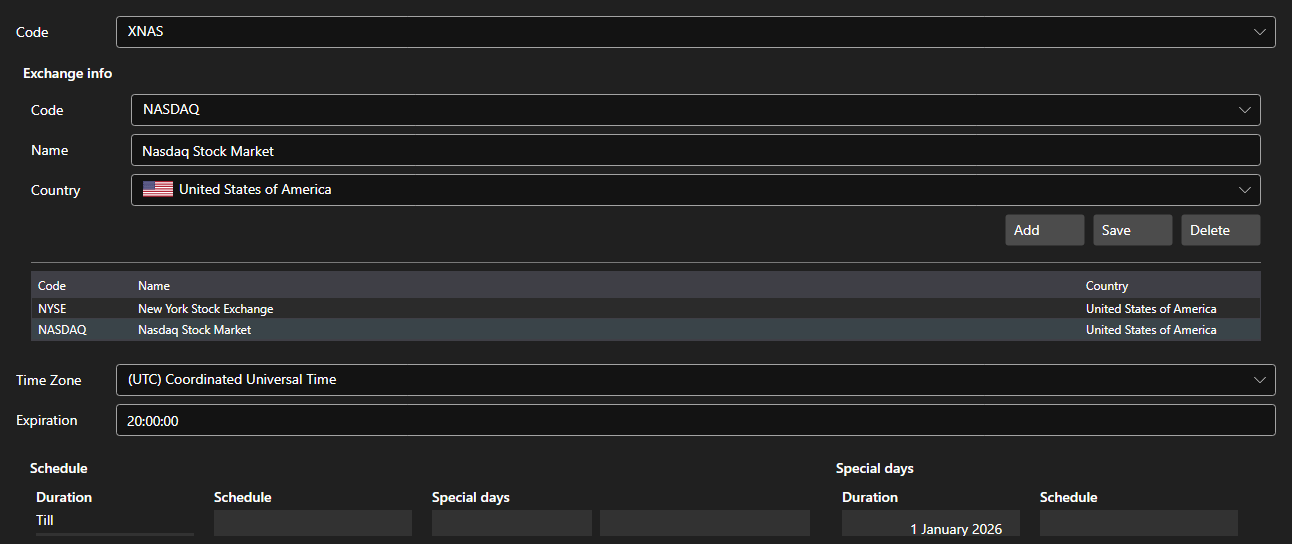

Screenshot: reference of trading boards

ExchangeBoardsPanel - a reference of ExchangeBoard trading boards. Every board has a code, an exchange, a time zone and a working schedule.

Main properties

ExchangeBoardsPanel.Boards - list of boards.
ExchangeBoardsPanel.SelectedBoardCode - code of the selected board.

The schedule is edited by the embedded WorkingTimeControl. It is this schedule that tells a backtest when the board is open and when it is closed.

Below are code snippets showing its usage:

<Window x:Class="Sample.BoardsWindow"
	xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
	xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
	xmlns:xaml="http://schemas.stocksharp.com/xaml"
	Height="500" Width="800">
	<xaml:ExchangeBoardsPanel x:Name="BoardsPanel" />
</Window>

// Select the board
BoardsPanel.SetBoardCode(ExchangeBoard.MicexTqbr.Code);

// Mark the reference as changed
BoardsPanel.Changed += () => _isModified = true;

// Save the boards
foreach (var board in BoardsPanel.Boards)
	_exchangeInfoProvider.Save(board);
