String concat

The cube concatenates several incoming values into a single text string according to a template with placeholders in curly braces. Each placeholder name adds an input socket with the same name. You can reference nested properties through dots and specify formatting after a colon.

Incoming sockets

Incoming sockets

• Created dynamically from placeholder names. Each socket accepts data of any type.

Outgoing sockets

Outgoing sockets

• Text – the concatenated and formatted string.

Parameters

Parameters

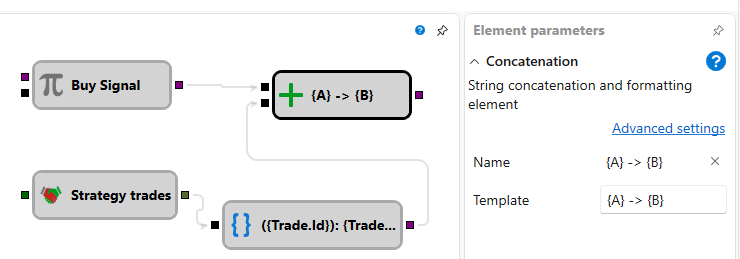

• Template – string concatenation and formatting template. Editing the template updates the list of input sockets.

Examples

• Template Price: {price:0.00}, Qty: {qty} with price = 10.5 and qty = 2 produces Price: 10.50, Qty: 2.
• Template {time:HH:mm:ss} - {trade.Price} with sockets time and trade (trade.Price = 100) produces 09:15:00 - 100.
• Template {side} {volume} @ {trade.Price} with sockets side = Buy, volume = 1, trade.Price = 100 produces Buy 1 @ 100.
