Setting Up the Environment

Requirements

To work with StockSharp you need:

  • .NET 10 (SDK and Runtime) — download
  • IDE — Visual Studio 2022+, JetBrains Rider, or VS Code
  • NuGet — package manager (built into Visual Studio and Rider)

Verify the SDK is installed:

dotnet --version

Creating a Project

Visual Studio 2022+

  1. File → New → Project
  2. Select Console App or WPF Application template
  3. Set the target framework to .NET 10

JetBrains Rider

  1. File → New Solution
  2. Select .NET / .NET Core → Console Application
  3. Set Target Framework: net10.0

Command Line (CLI)

# Console application
dotnet new console -n MyTradingApp --framework net10.0
cd MyTradingApp

# WPF application (Windows only)
dotnet new wpf -n MyTradingGui --framework net10.0-windows

NuGet Package Catalog

StockSharp is distributed via NuGet. Below is the complete package catalog organized by category.

Core

Package Description
StockSharp.Messages Base messages and contracts. Foundation of the entire framework
StockSharp.BusinessEntities Trading entities: Security, Order, Trade, Portfolio, etc.
StockSharp.Algo Core algorithmic trading, Connector, subscriptions, candles
StockSharp.Configuration Configuration management, connection settings
StockSharp.Localization Localization system (English by default)

Strategies and Indicators

Package Description
StockSharp.Algo.Strategies Strategy framework — base Strategy class, positions, PnL
StockSharp.Algo.Indicators 100+ technical indicators (SMA, EMA, RSI, MACD, Bollinger, etc.)

Testing

Package Description
StockSharp.Algo.Testing Backtesting on historical data, trade emulation

Storage and Data

Package Description
StockSharp.Algo.Export Market data export (CSV, Excel, JSON, etc.)
StockSharp.Algo.Import Data import from external formats

Analytics and Computation

Package Description
StockSharp.Algo.Analytics Analytics scripts interfaces
StockSharp.Algo.Compilation Runtime code compilation
StockSharp.Algo.Gpu GPU-accelerated indicator calculations (CUDA via ILGPU)

GUI Components (Windows Only)

Package Description
StockSharp.Xaml WPF controls: instrument, portfolio, and order tables
StockSharp.Xaml.Charting Candlestick charts, indicators, equity curves
StockSharp.Charting.Interfaces Chart component interfaces
StockSharp.Alerts.Interfaces Alert system interfaces
StockSharp.Diagram.Core Visual strategy designer core

Connectors (Exchanges and Brokers)

Each connector is a separate NuGet package. Main connectors:

Package Exchange/Broker
StockSharp.Binance Binance
StockSharp.InteractiveBrokers Interactive Brokers
StockSharp.Fix FIX protocol (universal)
StockSharp.Connectors.Tinkoff Tinkoff Invest
StockSharp.Connectors.Coinbase Coinbase
StockSharp.Connectors.BitStamp Bitstamp
StockSharp.Connectors.Bittrex Bittrex
StockSharp.Finam Finam
Note

For the full list of connectors, see the Connectors section. Some connectors are only available through the private NuGet server.

Localization

The base StockSharp.Localization package includes English. Additional languages are installed as separate packages:

Package Language
StockSharp.Localization.ru Russian
StockSharp.Localization.zh Chinese
StockSharp.Localization.de German
StockSharp.Localization.es Spanish
StockSharp.Localization.ja Japanese
StockSharp.Localization.ko Korean
StockSharp.Localization.All All languages (meta-package)

Also available: ar, bn, ca, cs, da, el, fa, fi, fr, he, hi, hu, it, jv, ms, my, nl, no, pa, pl, pt, ro, sk, sr, sv, ta, th, tl, tr, uk, uz, vi.

Installing Packages

# Core packages
dotnet add package StockSharp.Algo
dotnet add package StockSharp.Algo.Strategies

# Connector (example — Binance)
dotnet add package StockSharp.Binance

# Indicators
dotnet add package StockSharp.Algo.Indicators

# Backtesting
dotnet add package StockSharp.Algo.Testing

# Localization (Russian)
dotnet add package StockSharp.Localization.ru

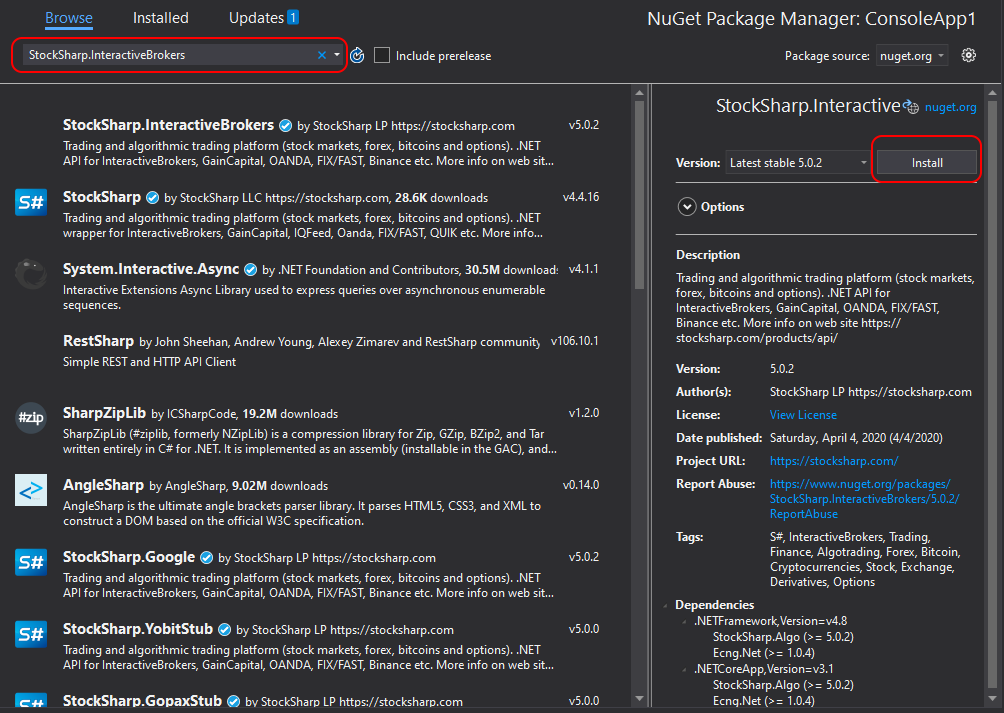

Via Visual Studio

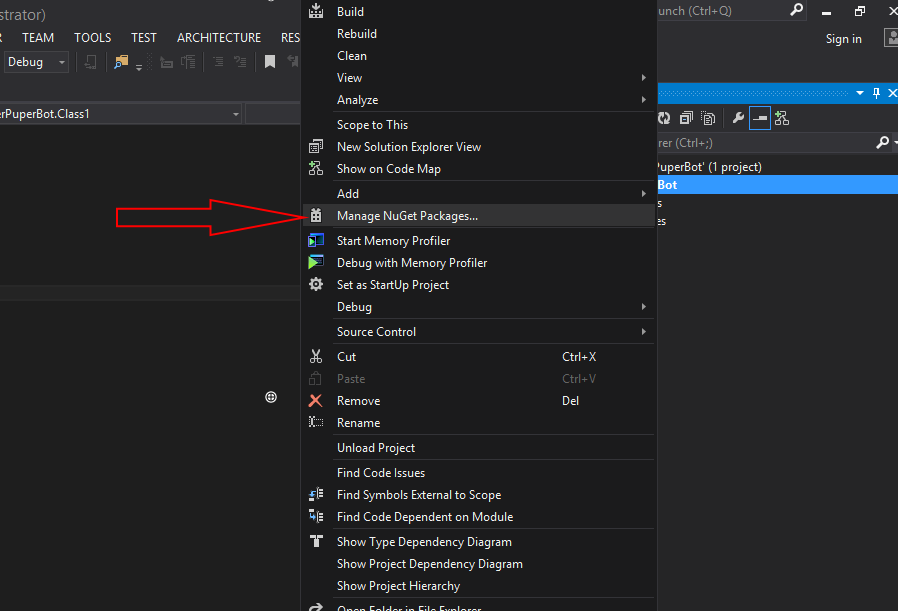

  1. Right-click on the project → Manage NuGet Packages...

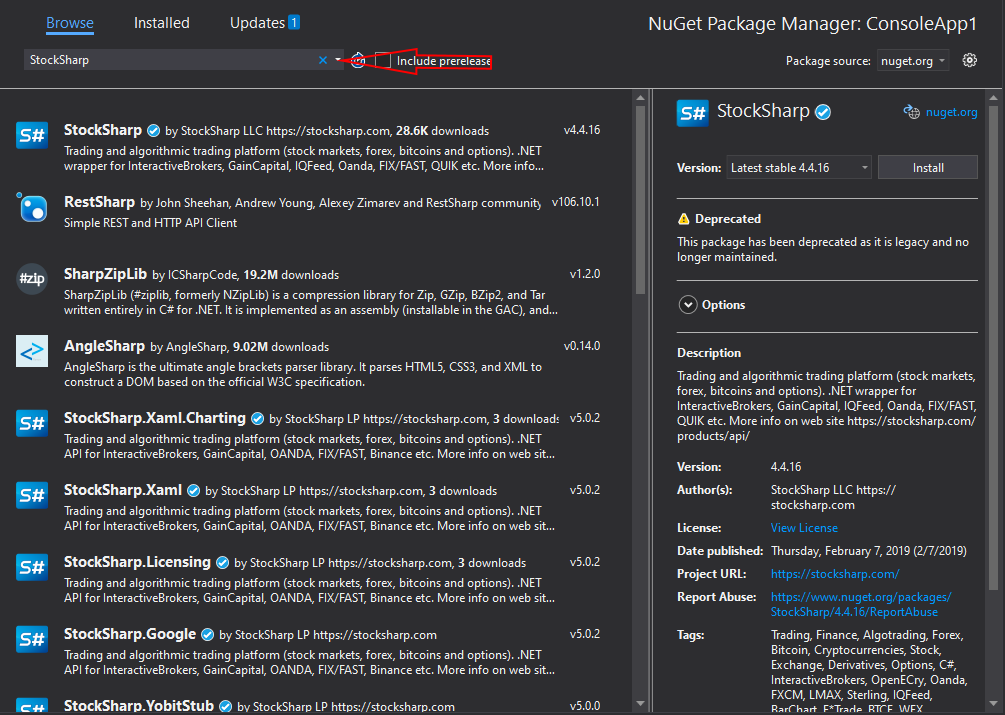

  2. Search for StockSharp
  3. Select the desired package → Install

All dependencies are installed automatically.

Via JetBrains Rider

  1. Right-click on the project → Manage NuGet Packages
  2. Search for StockSharp
  3. Select the package → Install

Via Package Manager Console (Visual Studio)

Install-Package StockSharp.Algo
Install-Package StockSharp.Binance
Install-Package StockSharp.Algo.Strategies

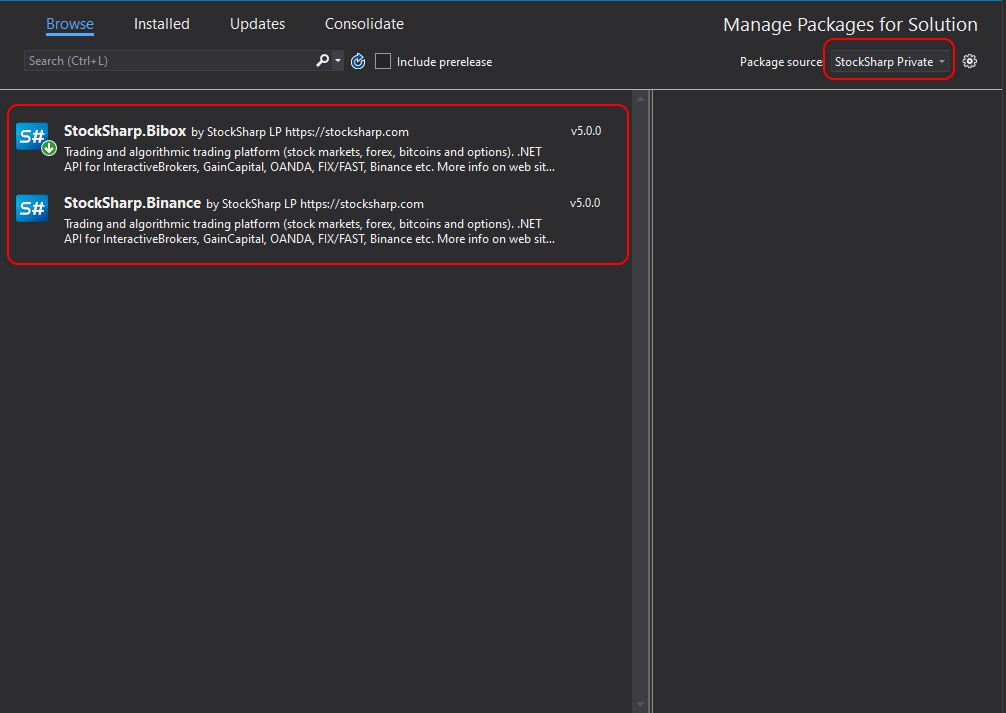

Private NuGet Server

Some components (crypto connectors, etc.) are only available through the private NuGet server for registered users.

Method 1: Authentication via Token in URL

  1. Register on the StockSharp website.
  2. Copy the token from your personal account.
  3. Add the package source:

CLI:

dotnet nuget add source "https://nuget.stocksharp.com/{YOUR_TOKEN}/v3/index.json" --name StockSharpPrivate

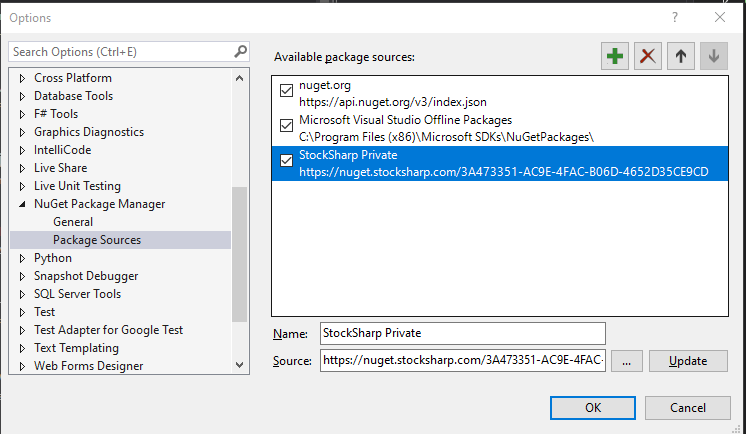

Visual Studio: open Tools → Options → NuGet Package Manager → Package Sources and add a new source with the URL https://nuget.stocksharp.com/{YOUR_TOKEN}/v3/index.json.

Rider: open Settings → Build, Execution, Deployment → NuGet → Sources and add the source.

Method 2: Authentication via Username and Password

  1. Add a package source with the URL https://nuget.stocksharp.com/x/v3/index.json
  2. When you try to use this source, a login prompt will appear
  3. Enter your StockSharp account credentials (or x as the username and your token as the password)

CLI:

dotnet nuget add source "https://nuget.stocksharp.com/x/v3/index.json" --name StockSharpPrivate --username YOUR_LOGIN --password YOUR_PASSWORD --store-password-in-clear-text
Tip

To reset saved credentials on Windows, open Control Panel → User Accounts → Credential Manager and delete entries related to nuget.stocksharp.com.

Updating Packages

CLI

# Check for available updates
dotnet list package --outdated

# Update a specific package
dotnet add package StockSharp.Algo

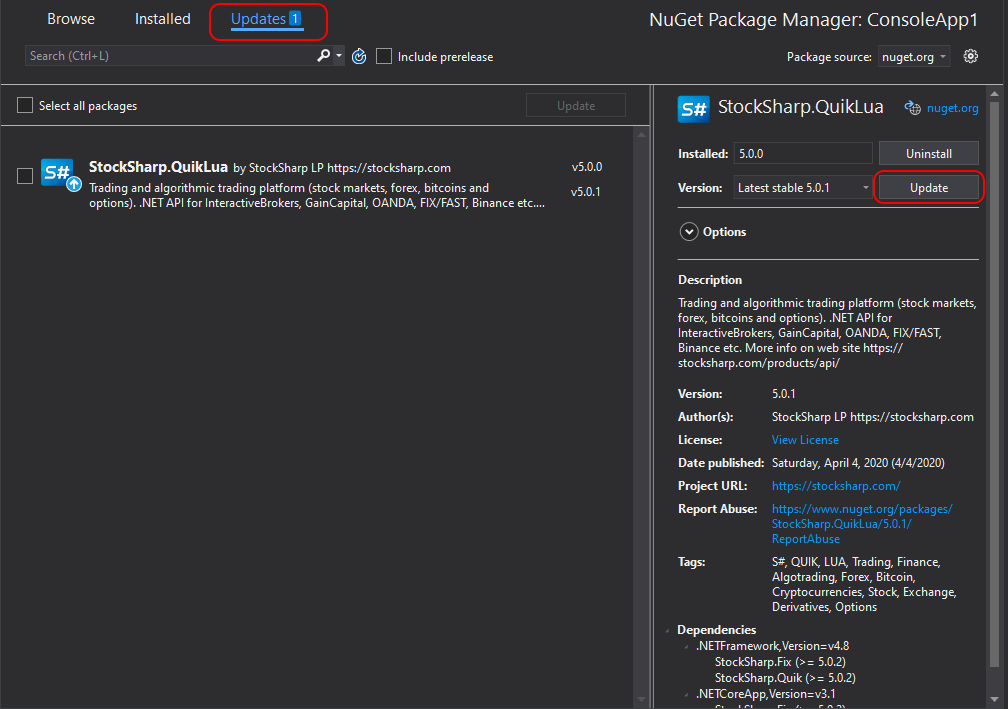

Visual Studio

  1. Manage NuGet Packages... → Updates tab
  2. Select packages → Update

Rider

  1. Manage NuGet Packages → Upgrades tab
  2. Select packages → Upgrade

Troubleshooting

Version Mismatch

All StockSharp packages must be the same version. If you encounter type or method errors, ensure all StockSharp.* packages are updated to the same version.

Package Not Found on Public NuGet

Some connectors are only available through the private server. Make sure the correct source is added.

GUI Issues on Non-Windows

GUI components (StockSharp.Xaml, StockSharp.Xaml.Charting) work only on Windows. On Linux/macOS, use console applications without GUI packages.

Package Restore Errors

# Clear NuGet cache
dotnet nuget locals all --clear

# Retry restore
dotnet restore

Project File Structure (.csproj)

Minimal (Console Trading Bot)

<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>net10.0</TargetFramework>
  </PropertyGroup>

  <ItemGroup>
    <PackageReference Include="StockSharp.Algo" Version="*" />
    <PackageReference Include="StockSharp.Binance" Version="*" />
  </ItemGroup>
</Project>

Extended (Strategy with Indicators and Testing)

<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>Exe</OutputType>
    <TargetFramework>net10.0</TargetFramework>
  </PropertyGroup>

  <ItemGroup>
    <!-- Core -->
    <PackageReference Include="StockSharp.Algo" Version="*" />
    <PackageReference Include="StockSharp.Configuration" Version="*" />

    <!-- Strategies and indicators -->
    <PackageReference Include="StockSharp.Algo.Strategies" Version="*" />
    <PackageReference Include="StockSharp.Algo.Indicators" Version="*" />

    <!-- Connector -->
    <PackageReference Include="StockSharp.Binance" Version="*" />

    <!-- Backtesting -->
    <PackageReference Include="StockSharp.Algo.Testing" Version="*" />

    <!-- Localization -->
    <PackageReference Include="StockSharp.Localization.ru" Version="*" />
  </ItemGroup>
</Project>

WPF Application with Charts

<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <OutputType>WinExe</OutputType>
    <TargetFramework>net10.0-windows</TargetFramework>
    <UseWPF>true</UseWPF>
  </PropertyGroup>

  <ItemGroup>
    <PackageReference Include="StockSharp.Algo" Version="*" />
    <PackageReference Include="StockSharp.Algo.Strategies" Version="*" />
    <PackageReference Include="StockSharp.Xaml.Charting" Version="*" />
    <PackageReference Include="StockSharp.Binance" Version="*" />
  </ItemGroup>
</Project>

Verifying the Installation

Create a minimal application:

using StockSharp.Algo;
using StockSharp.BusinessEntities;

Console.WriteLine("StockSharp successfully configured!");

var connector = new Connector();
Console.WriteLine($"Connector created: {connector}");

dotnet run

Examples

Ready-made examples of StockSharp usage are available in the Samples/ directory of the repository. They cover connecting to exchanges, subscribing to data, building candles, indicators, strategies, and testing.
