Orders

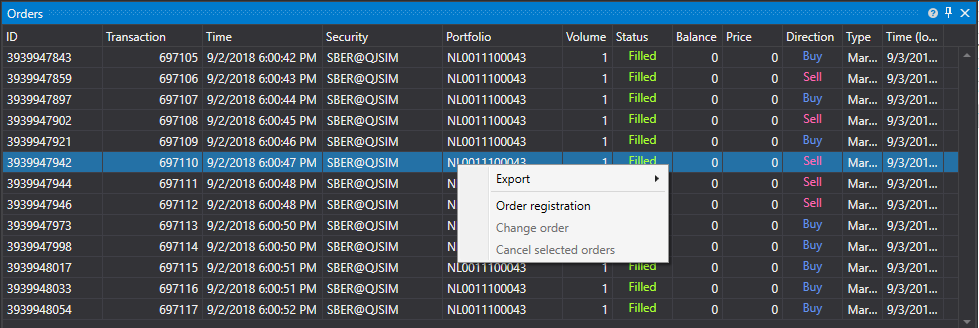

OrderGrid is a table for displaying orders and conditional orders. In addition, the context menu of this table contains commands for operations with orders: registration, replacement, and cancellation of orders. Selecting a menu item generates events: OrderGrid.OrderRegistering, OrderGrid.OrderReRegistering, or OrderGrid.OrderCanceling respectively.

Tip

The operation itself (registration, replacement, cancellation) is not performed. The corresponding code needs to be written in the event handlers manually.

Main Members

• OrderGrid.Orders - list of orders.
• OrderGrid.SelectedOrder - selected order.
• OrderGrid.SelectedOrders - selected orders.
• OrderGrid.AddRegistrationFail(StockSharp.BusinessEntities.OrderFail fail ) - method that adds an order registration error message to the comment field.
• OrderGrid.OrderRegistering - order registration event (occurs after selecting the corresponding context menu item).
• OrderGrid.OrderReRegistering - order replacement event (occurs after selecting the corresponding context menu item).
• OrderGrid.OrderCanceling - order cancellation event (occurs after selecting the corresponding context menu item).

Below are code fragments showing its use. The code example is taken from Samples/Common/SampleConnection.

<Window x:Class="Sample.OrdersWindow"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:loc="clr-namespace:StockSharp.Localization;assembly=StockSharp.Localization"
    xmlns:xaml="http://schemas.stocksharp.com/xaml"
    Title="{x:Static loc:LocalizedStrings.Orders}" Height="410" Width="930">
    <xaml:OrderGrid x:Name="OrderGrid" x:FieldModifier="public"
                    OrderCanceling="OrderGrid_OnOrderCanceling"
                    OrderReRegistering="OrderGrid_OnOrderReRegistering" />
</Window>


private readonly Connector _connector = new Connector();

private void ConnectClick(object sender, RoutedEventArgs e)
{
    // Other code during connection...

    // Subscribe to the order received event
    _connector.OrderReceived += (subscription, order) =>
    {
        // Add orders to the OrderGrid table
        _ordersWindow.OrderGrid.Orders.TryAdd(order);
    };

    // To connect the connector
    _connector.Connect();
}

// Cancels all selected orders
private void OrderGrid_OnOrderCanceling(IEnumerable<Order> orders)
{
    // Iterate through selected orders and cancel each one
    foreach (var order in orders)
    {
        _connector.CancelOrder(order);
    }
}

// Opens an order editing window and performs replacement of the selected order
private void OrderGrid_OnOrderReRegistering(Order order)
{
    var window = new OrderWindow
    {
        Title = LocalizedStrings.Str2976Params.Put(order.TransactionId),
        SecurityProvider = _connector,
        MarketDataProvider = _connector,
        Portfolios = new PortfolioDataSource(_connector),
        Order = order.ReRegisterClone(newVolume: order.Balance)
    };

    if (window.ShowModal(this))
        _connector.ReRegisterOrder(order, window.Order);
}


Working with Orders through Subscriptions

The modern approach to working with orders involves using subscriptions:

// Subscribe to the order received event
_connector.OrderReceived += OnOrderReceived;

// Order received handler
private void OnOrderReceived(Subscription subscription, Order order)
{
    // Check if the order belongs to the subscription we're interested in
    if (subscription == _ordersSubscription)
    {
        // Add the order to the table
        _ordersWindow.OrderGrid.Orders.TryAdd(order);

        // Additional order processing
        Console.WriteLine($"Order received: {order.TransactionId}, Status: {order.State}");

        // If the order is in a final state, update the UI
        if (order.State == OrderStates.Done || order.State == OrderStates.Failed)
        {
            this.GuiAsync(() => {
                // Update interface for completed orders
            });
        }
    }
}

Canceling Orders

// Modern approach to order cancellation
private void CancelOrder(Order order)
{
    try
    {
        _connector.CancelOrder(order);

        // Log the action
        _logManager.AddInfoLog($"Order cancellation command sent {order.TransactionId}");
    }
    catch (Exception ex)
    {
        _logManager.AddErrorLog($"Error when canceling order: {ex.Message}");
    }
}

// Mass cancellation of orders
private void CancelAllOrders()
{
    var activeOrders = _ordersWindow.OrderGrid.Orders
        .Where(o => o.State == OrderStates.Active)
        .ToArray();

    foreach (var order in activeOrders)
    {
        CancelOrder(order);
    }
}

Handling Order Registration and Cancellation Errors

// Subscribe to order registration failures
_connector.OrderRegisterFailReceived += OnOrderRegisterFailed;

// Order registration failure handler
private void OnOrderRegisterFailed(Subscription subscription, OrderFail fail)
{
    // Add error information to OrderGrid
    _ordersWindow.OrderGrid.AddRegistrationFail(fail);

    // Log the error
    _logManager.AddErrorLog($"Order registration error: {fail.Error}");

    // Notify the user
    this.GuiAsync(() =>
    {
        MessageBox.Show(this,
            $"Failed to register order: {fail.Error}",
            "Registration Error",
            MessageBoxButton.OK,
            MessageBoxImage.Error);
    });
}
